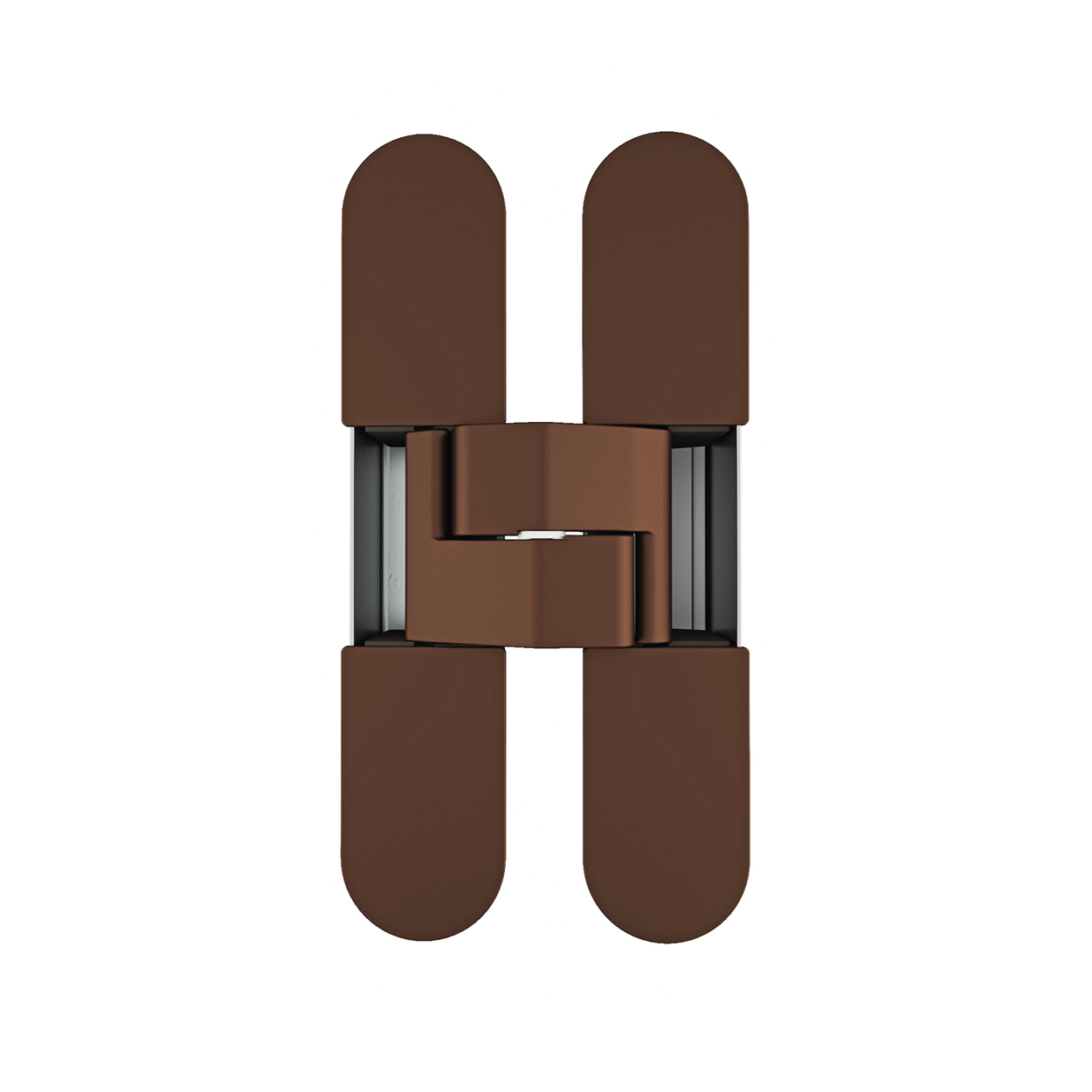

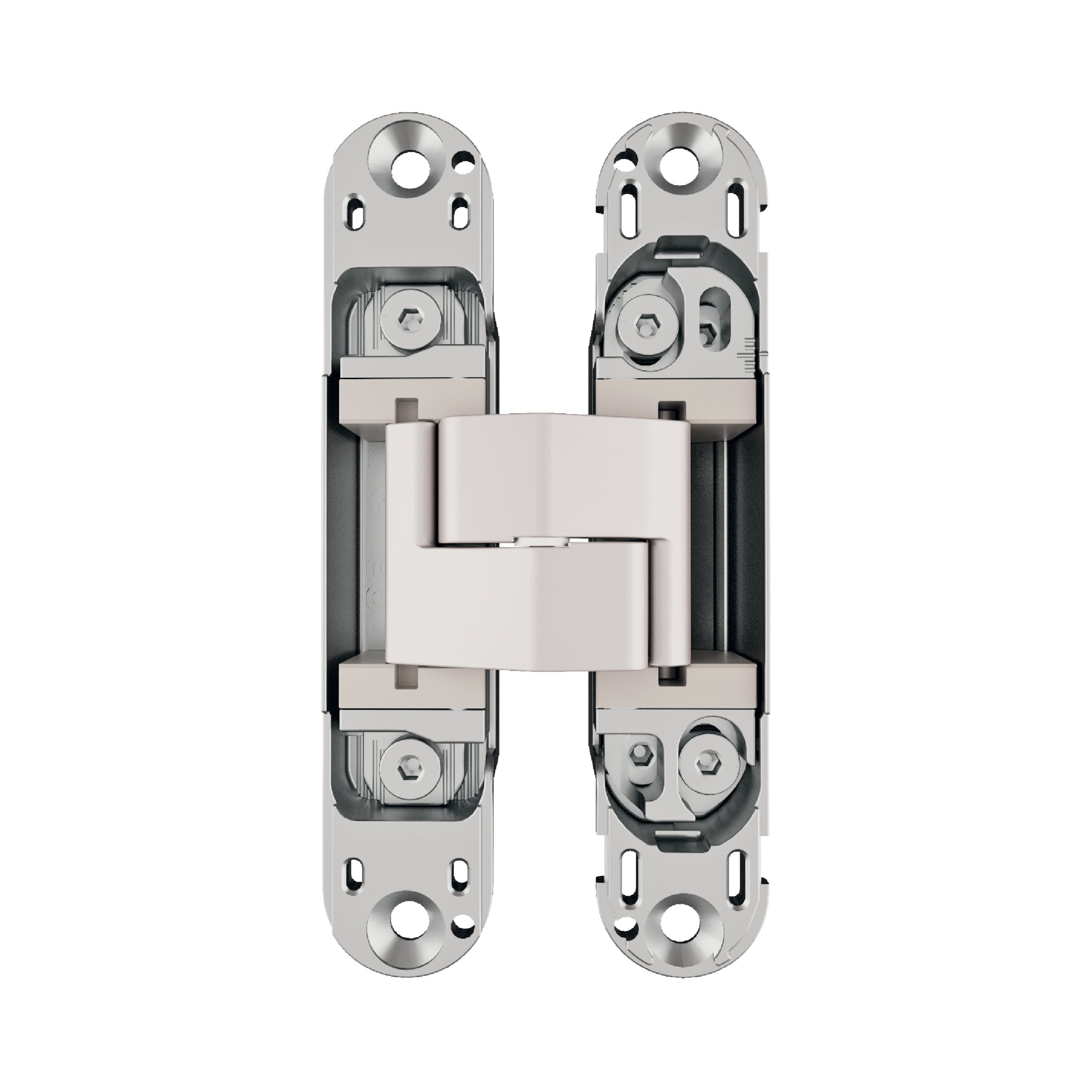

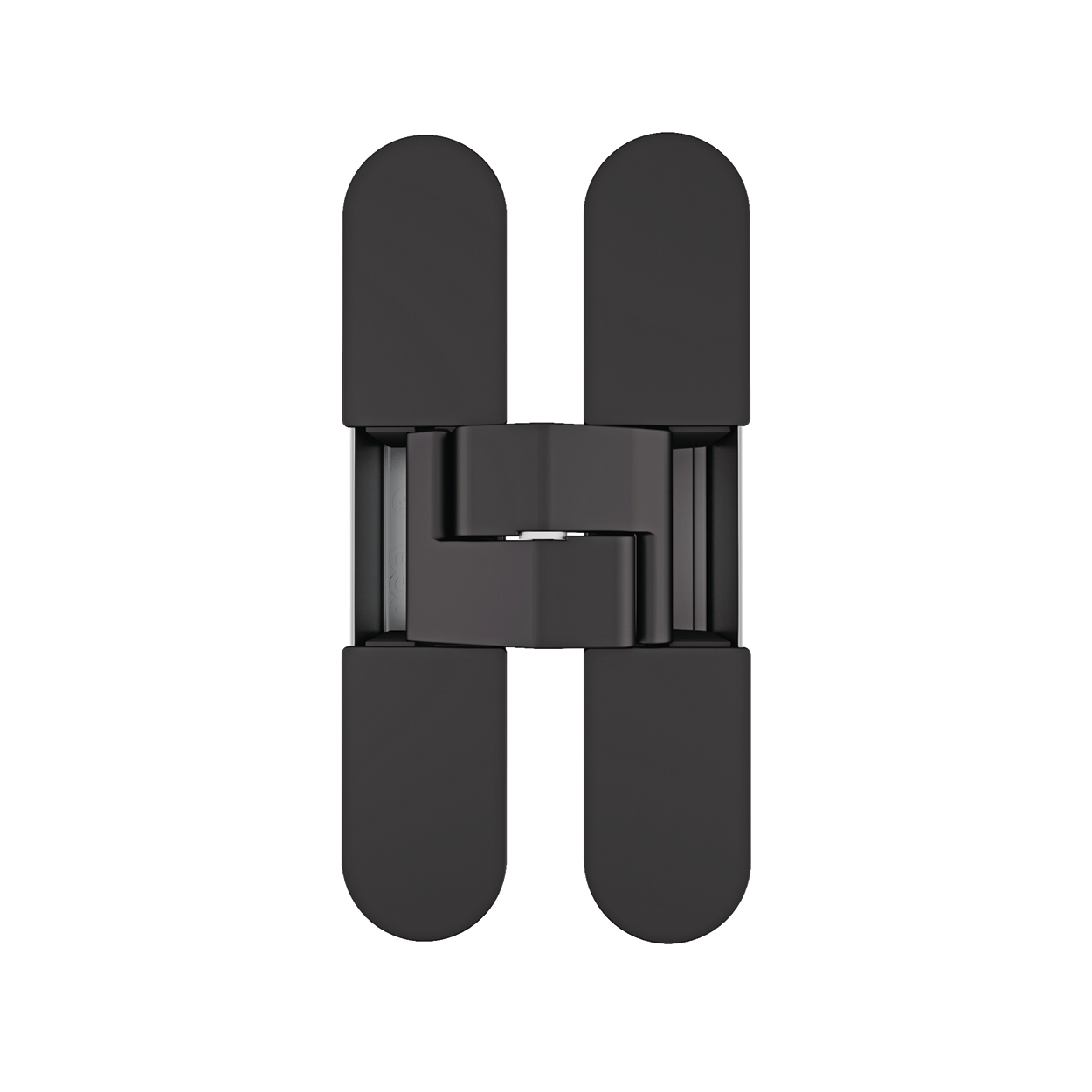

ECLIPSE 3.0

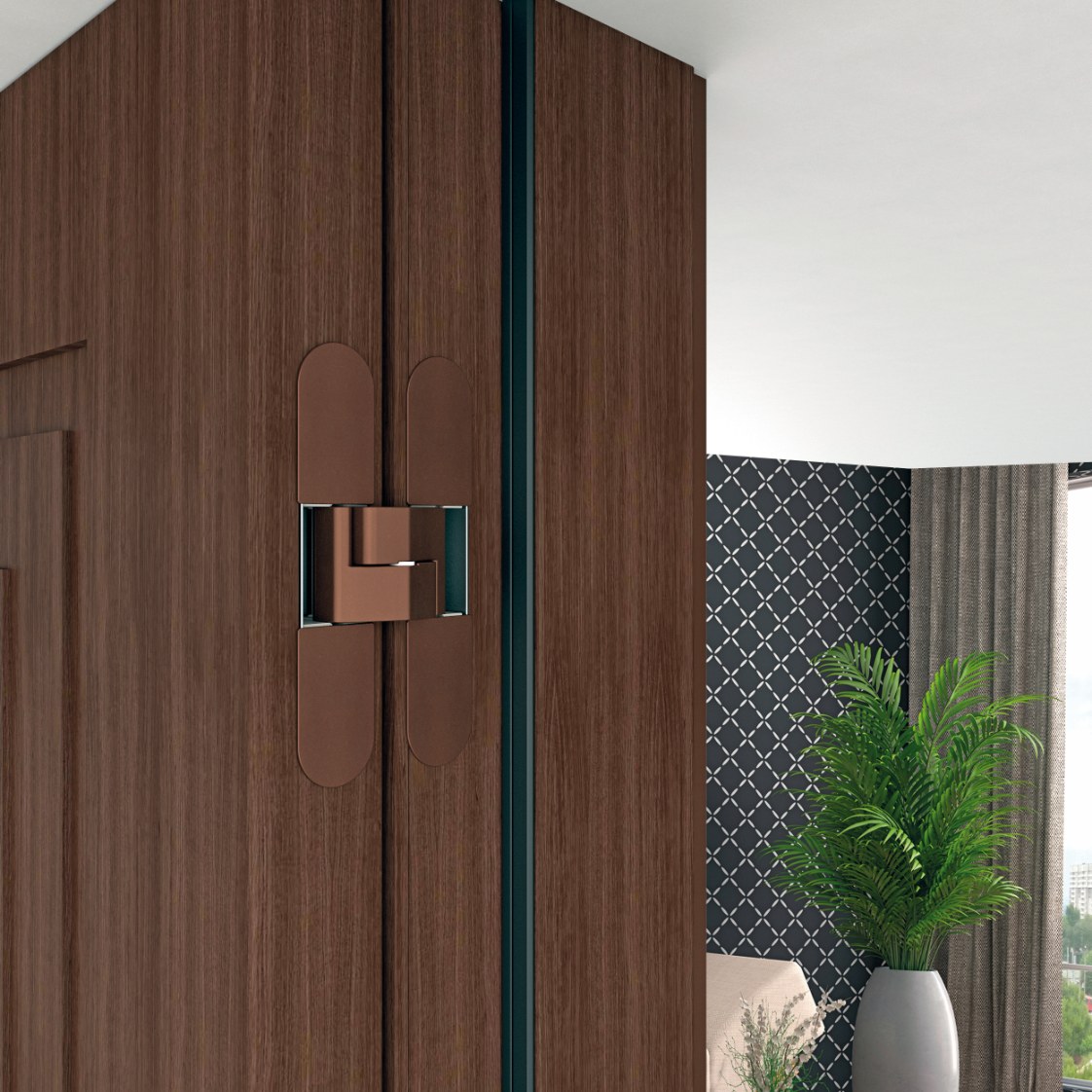

CONCEALED HINGE FOR FLUSH DOORS
SUITABLE FOR ALUMINIUM FRAMES.

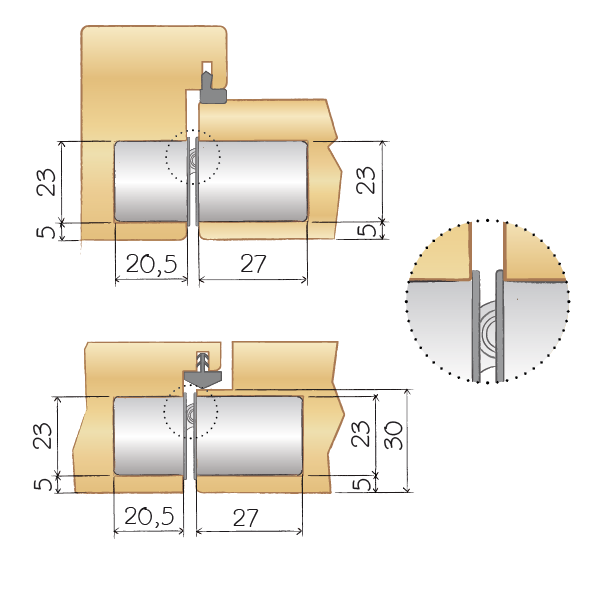

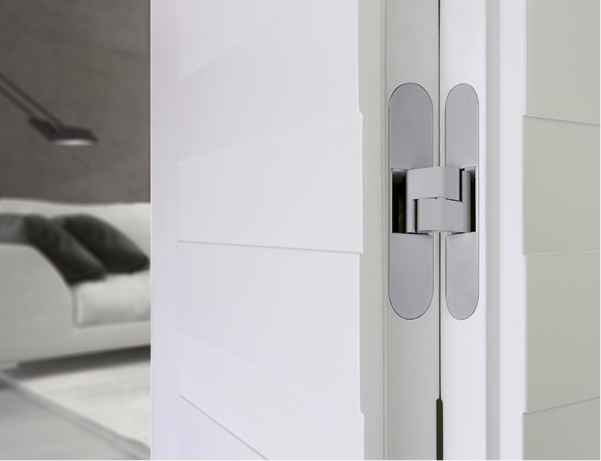

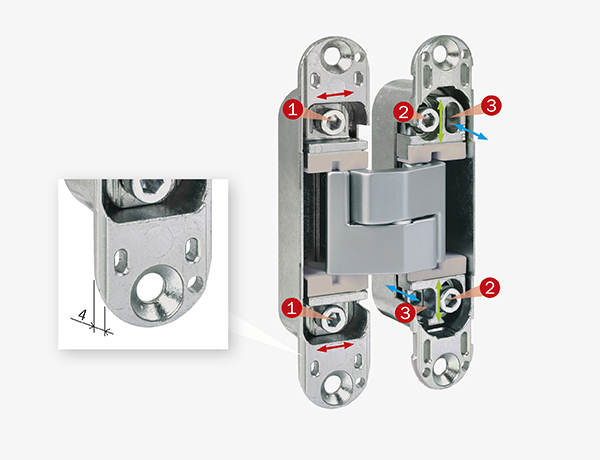

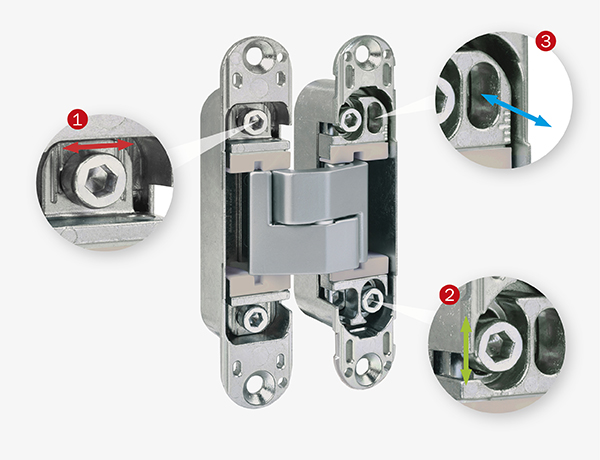

Hinge for flush doors with or without rebate. Suitable for aluminium frames, thanks to the 4 mm thickness of hinge fastening. Completely invisible thanks to its reduced dimensions. Easy installation and covers with coverplate. Suitable for fire doors.   ADJUSTMENTS
pressure ±1 mm
vertical ±2 mm
horizontal ±1,5 mm

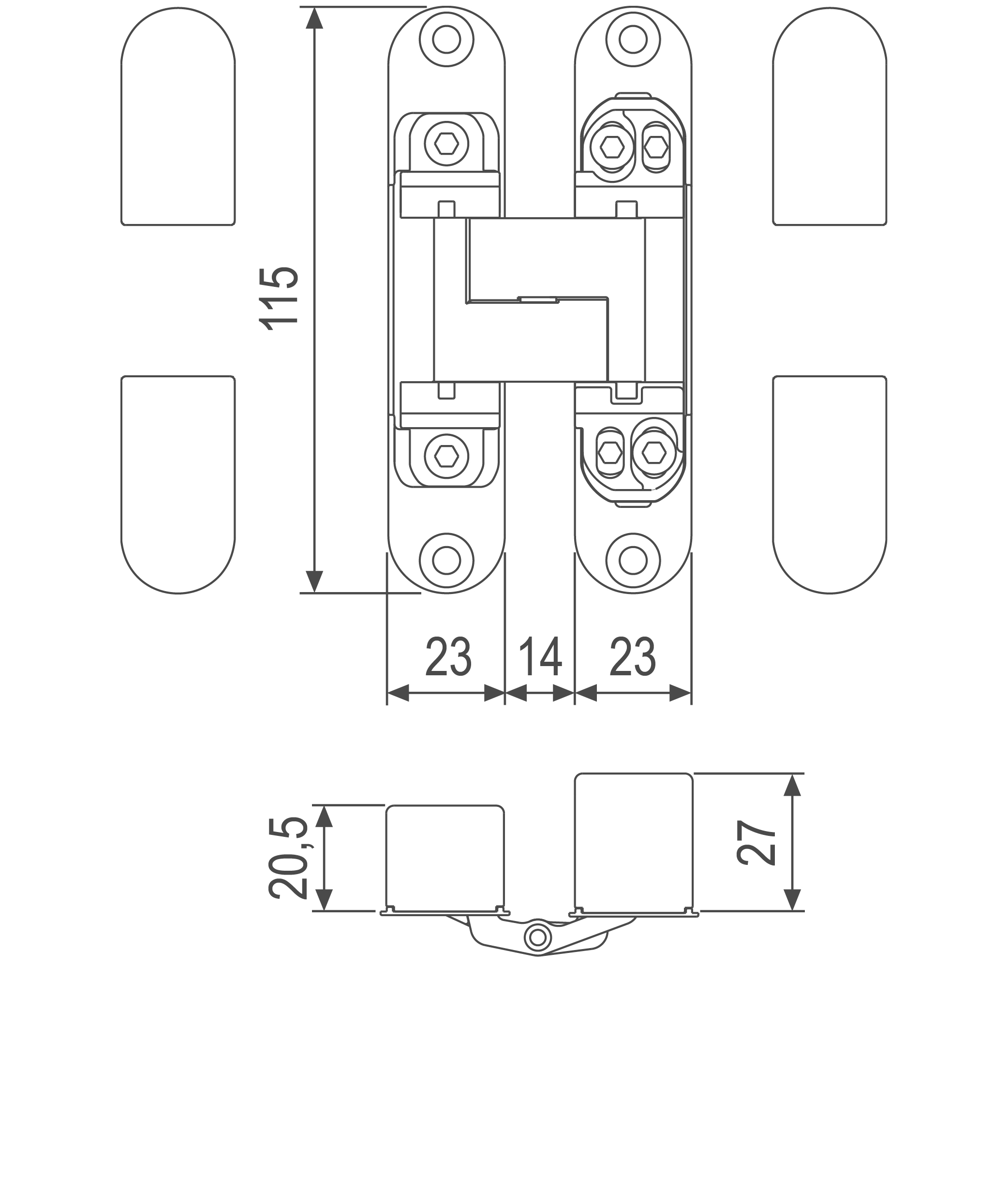

HEIGHT
115 mm
MAX. EXTENSION
14 mm

CAPACITY
40 kg with 2 hinges
60 kg with 3 hinges
CERTIFICATIONS / HIGHLIGHTS
FIRE DOOR EN1634
UL LISTED
